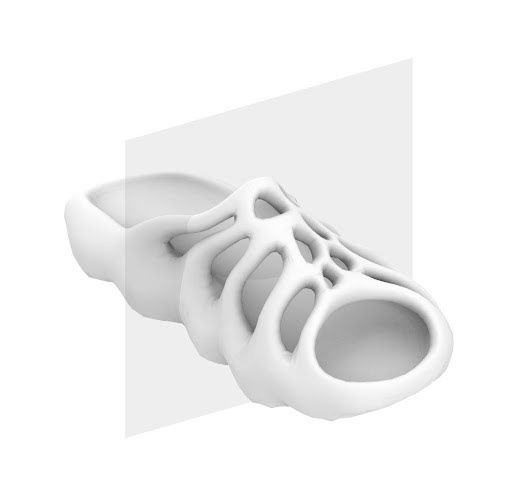

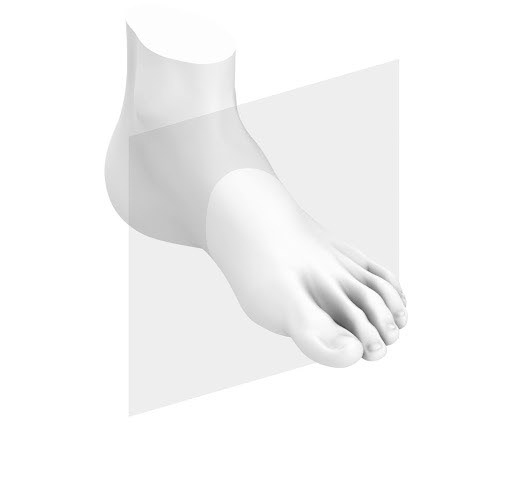

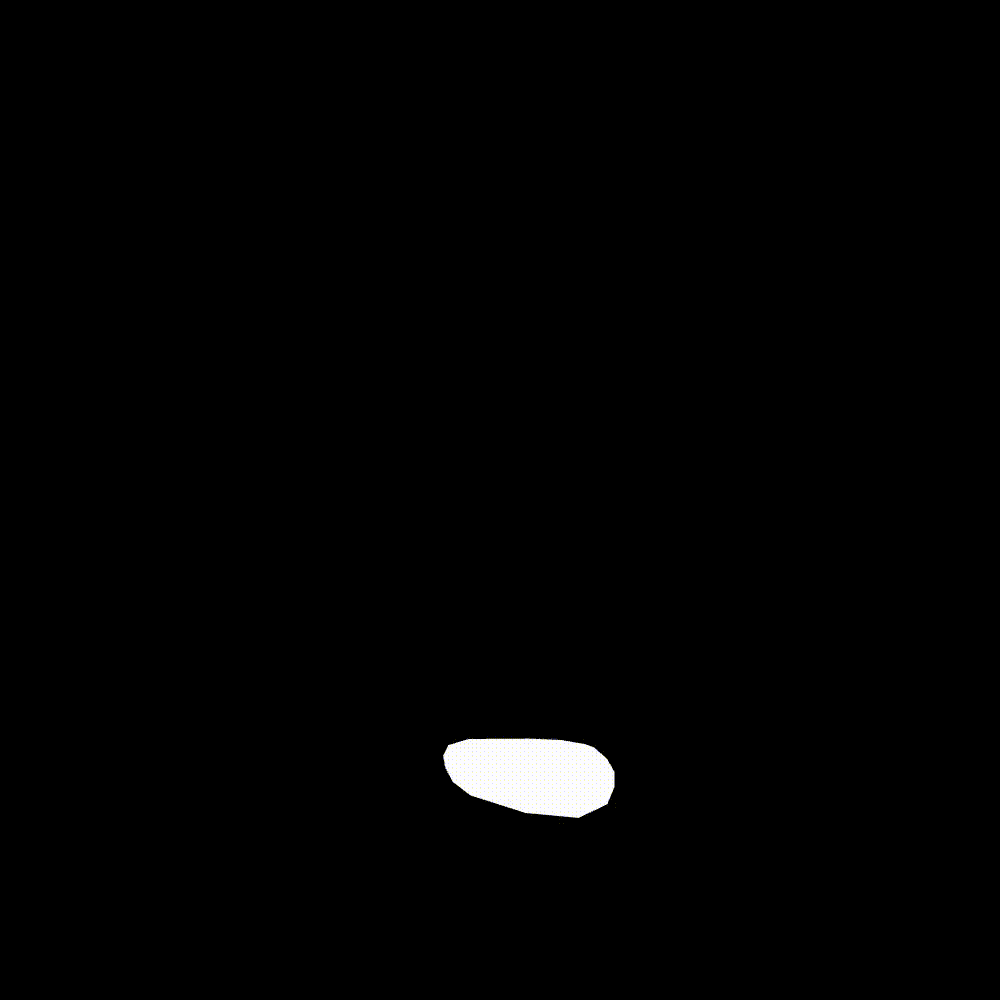

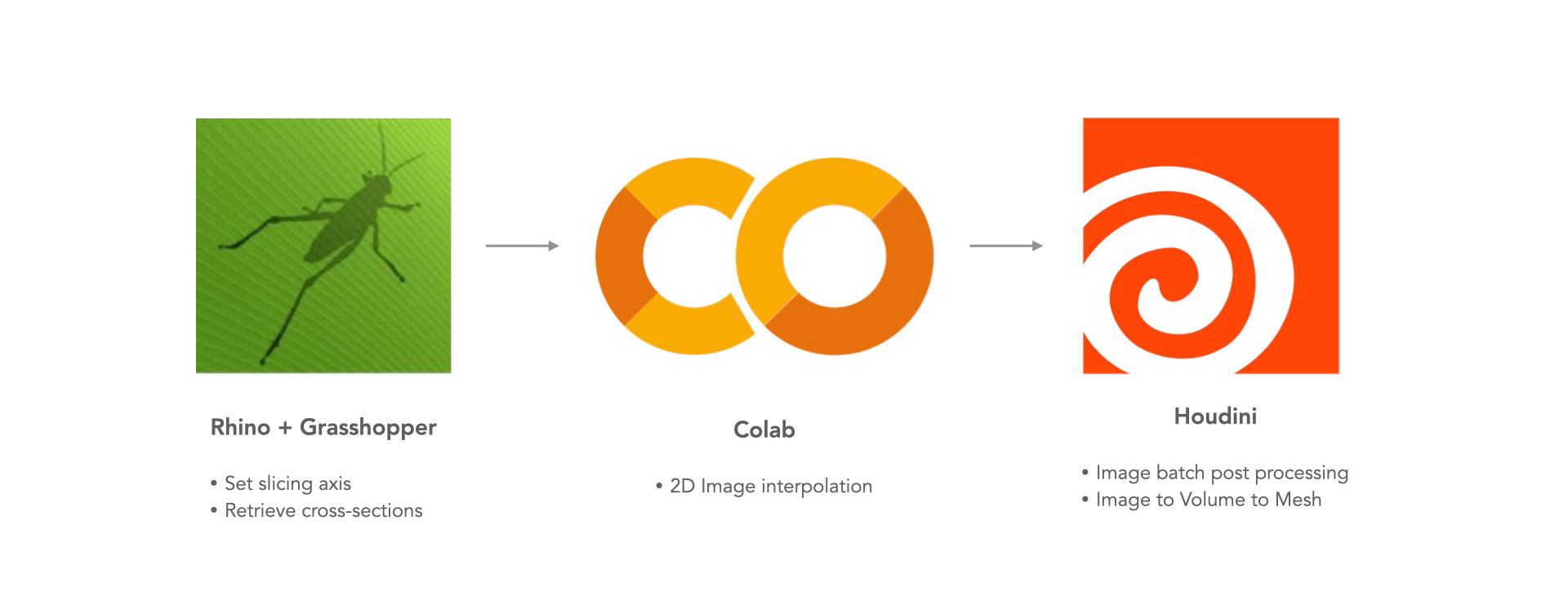

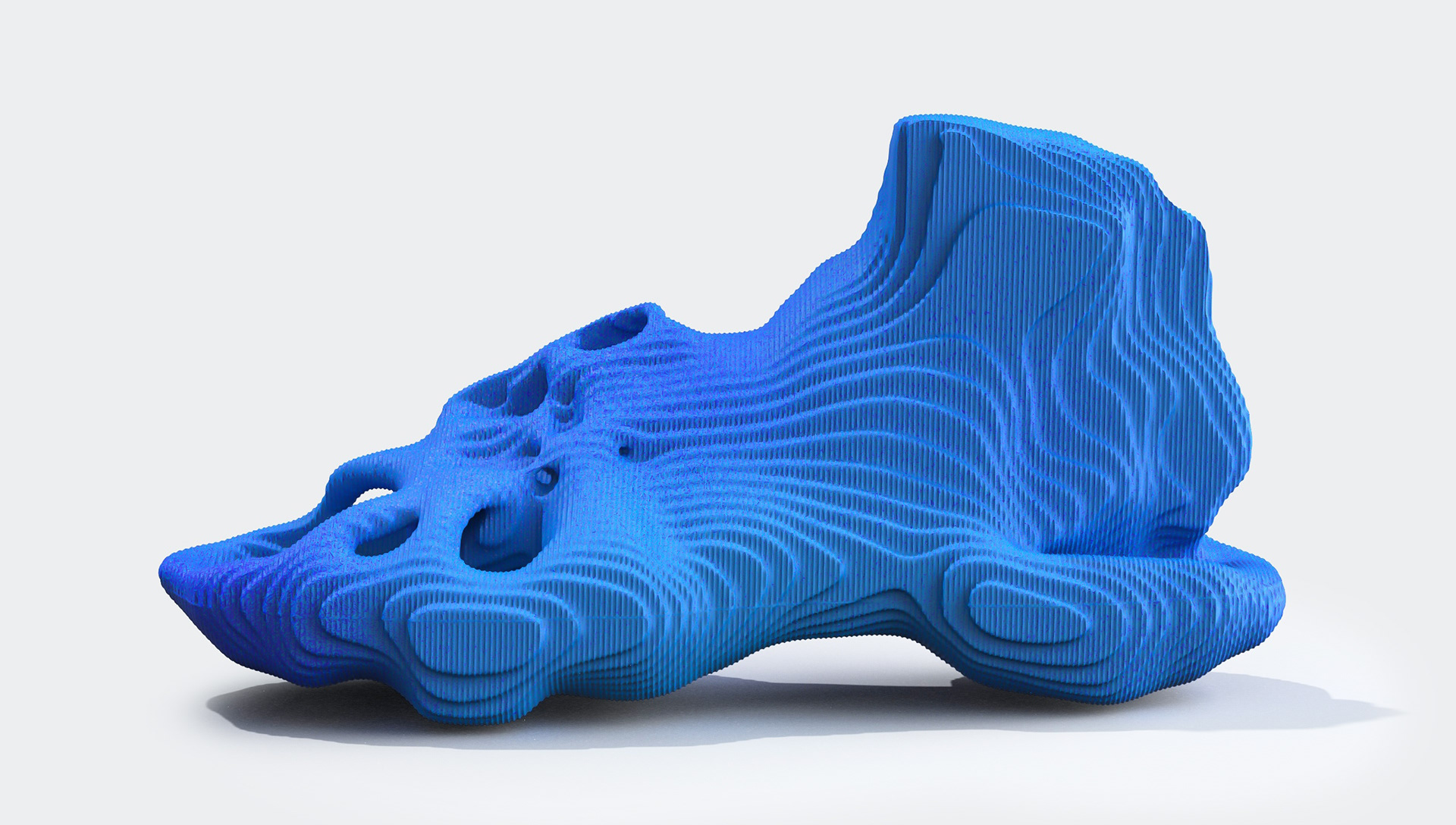

This project aims to integrate AI 2D-interpolation techniques into the 3D design process. It involves retrieving geometric sections from a specified slicing axis, and using an interpolation model to explore the latent space between the cross sections.
![](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/04f33009-63d5-486e-b961-48b547c33e1c_rw_600.jpeg?h=2180d0614dd3d1a3bae7477c8224ef8b)
![](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/ff774db6-a150-4099-a95a-89a7271f9d53_rw_600.jpeg?h=2f4c65e6192c44db8a6f43972f9fe8e0)
![](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/54b42f18-ee1a-41bc-a7bb-7f38f7ffbf5b_rw_1200.gif?h=eaae8a7bea832a1994741e936a5780e7)
![](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/c705d5f8-9766-4aef-91fa-b970fc245494_rw_1200.gif?h=d67869446fa0429a28956b3f0f687652)

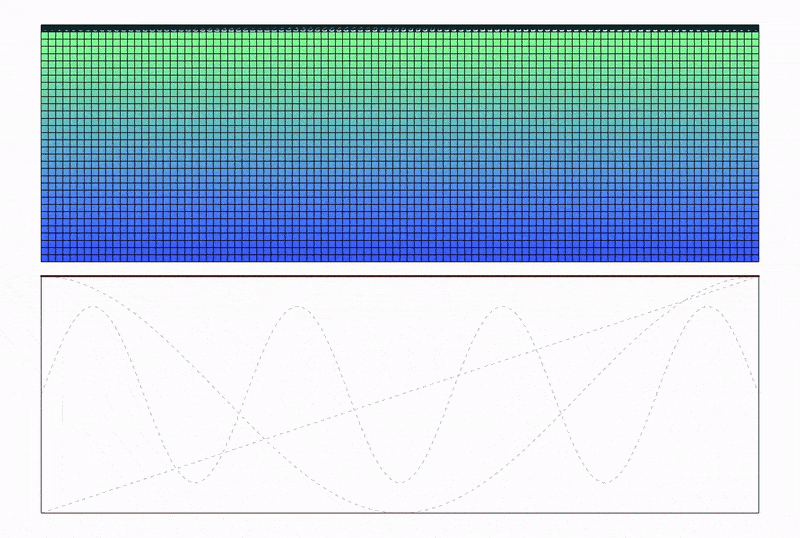

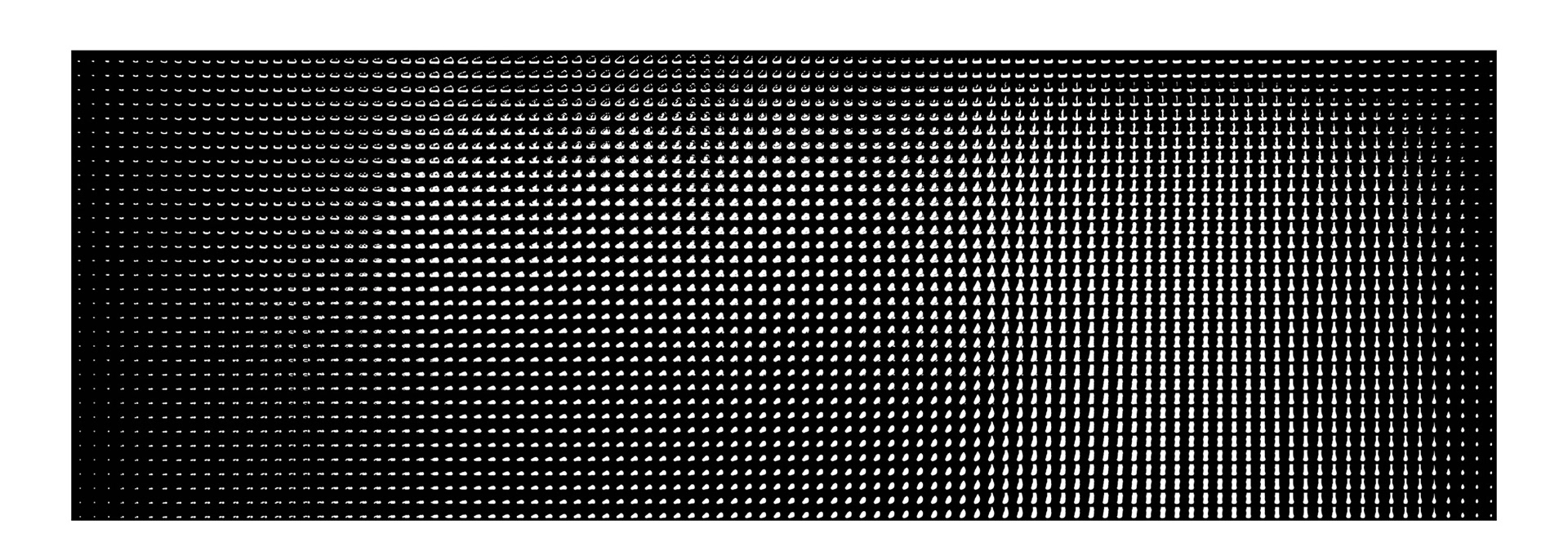

Image Interpolation Matrix

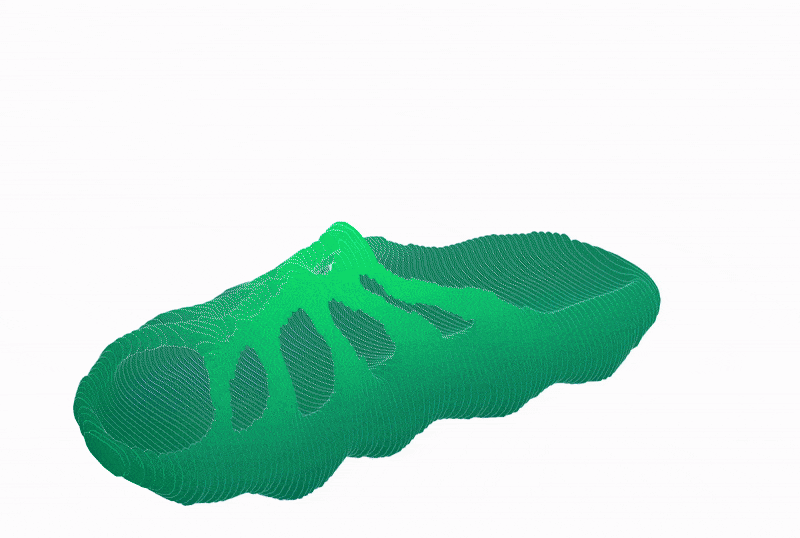

By utilizing an M by N image matrix (M: total cross section count, N: interpolation in each layer), it empowers user to parametrically blend geometries using a customized curve. This approach enhances control and facilitates seamless integration of diverse geometries.
![](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/6c245f1e-0e62-4b53-be01-469e77a78bf6_rw_1920.jpg?h=64cb40e90df678679e0139e149622ca2)
![](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/41882586-d333-408c-81c5-21f5678c84d9_rw_1200.gif?h=35722333448b896698443c03e5657887)
![](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/d64a9577-cb6b-4716-8a9f-7b307cacc571_rw_1200.gif?h=7fceb6d15207b06f6283de03304156ec)
It's also possible to get cross-sections from a non-linear axis, and stack them back together to build a sub-form.
![1. Input Geometry](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/bab6af1a-4eec-4e9b-a9b2-f703891d7ad8_rw_600.gif?h=a43171a4a4b3d11486ad7304572e2222)

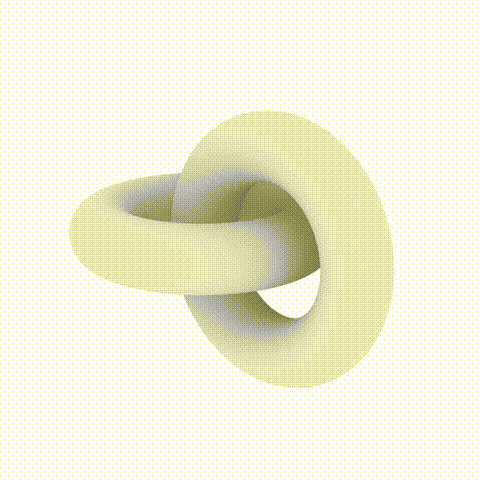

1. Input Geometry
![2. Non-linear Slicing Axis](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/c13a7f76-e65d-400c-afb4-70309a35a7ed_rw_600.gif?h=472c8ba8401e0955c16f53dfc01c7048)

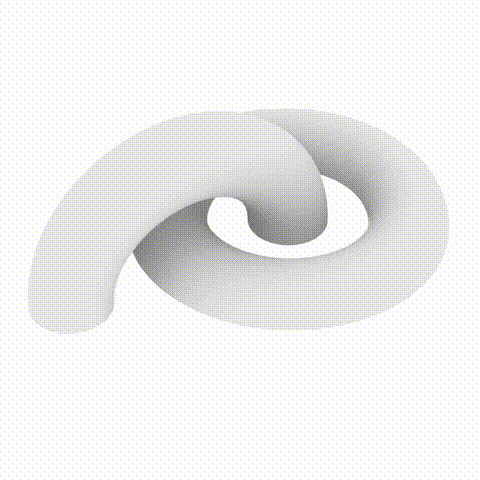

2. Non-linear Slicing Axis
![3. Cross-section](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/48839954-e99f-48a7-954d-5dda600114c0_rw_600.gif?h=667cb8102a3bb2db1e653da277ce14c9)
3. Cross-section
![4. Output Geometry](https://cdn.myportfolio.com/8632ecc7-7f7b-4944-af19-58909fae8d1b/e4ee3464-8f12-45e1-a83a-f843667dbc48_rw_600.gif?h=74cc424e820790d8429aacdf8406a603)
